Scot Pumps – Bronze Pumps

Bronze Motorpumps™ are single stage end suction centrifugal pumps close coupled to NEMA standard motors. Features include heavy duty cast bronze construction with precision machined and balanced impellers secured to the motor shaft with a stainless steel locknut. Perfect alignment, exceptional seal life and quiet operation are Motorpump™ advantages. Product details and specifications can be found in our Industrial catalog.

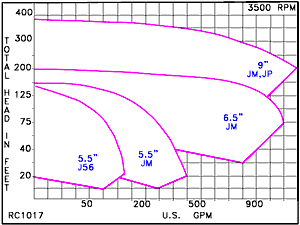

3500 RPM
				High Pressure Heads to 350 Feet Capacities to 1200 GPM 0.33 to 100 HP 60 and 50 Hertz Available 5.5″ – 9.0″ Impeller All Bronze Construction NEMA Standard C56, JM and JP Frames Mechanical Seals ODP, TEFC and Explosion Proof Enclosures

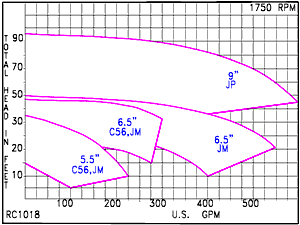

1750 RPM
High Flow Capacities to 650 GPM Heads to 95 Feet Low NPSH Design 0.25 to 20 HP 5.5″ – 6.5″ Impeller All Bronze Construction NEMA Standard C56, JM and JP Frames Mechanical Seals ODP, TEFC and Explosion Proof Enclosures
Specialty Pump designs available in bronze construction include: Self Priming – Low Temp Chiller – DC Motor Driven – Vortex Solids Handling – Semi-Open Impeller
